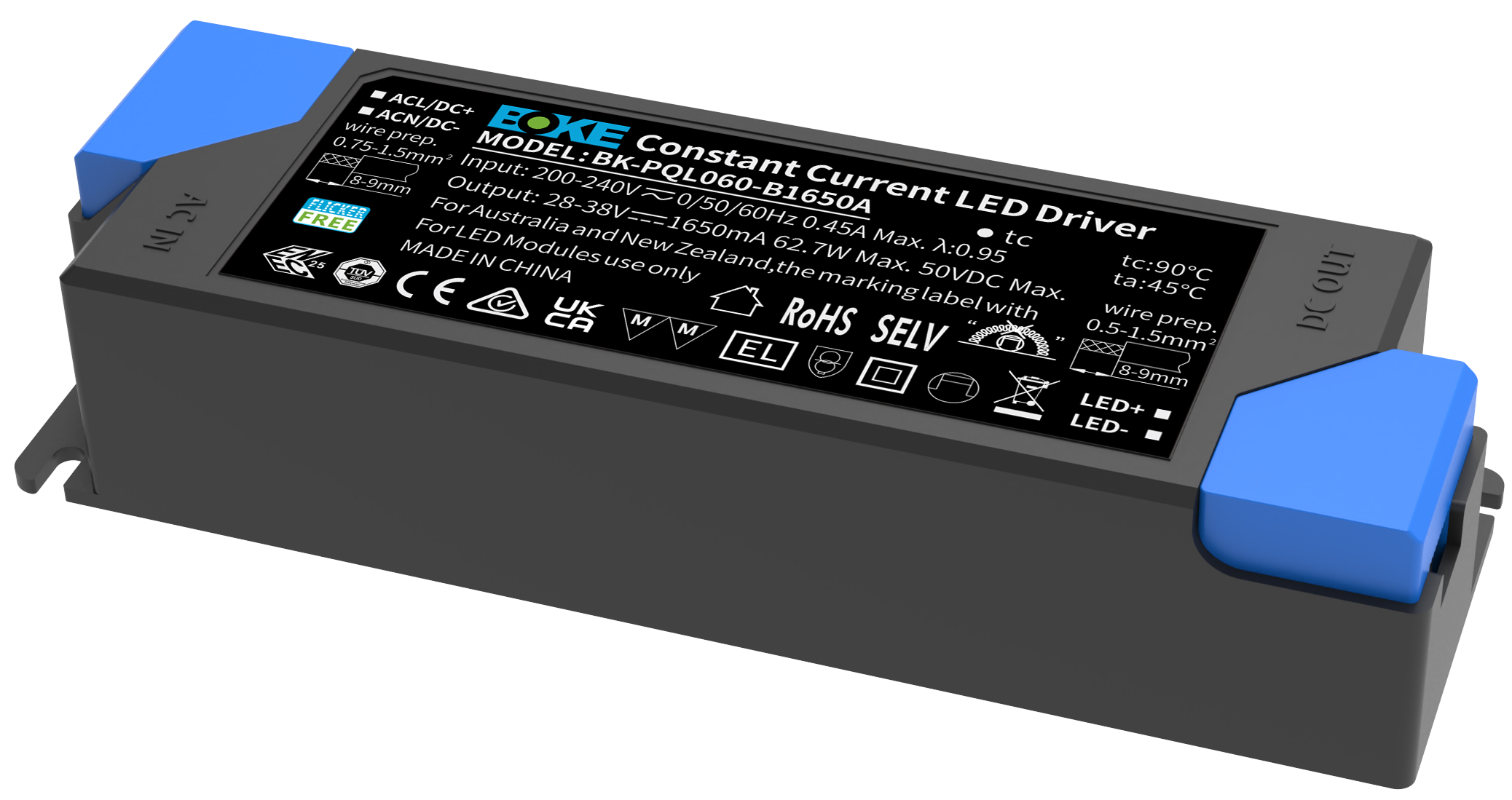

PQL 系列
恒流独立式开关驱动器
系列特点
·输出无频闪，符合ErP能效认证无频闪标准
·免螺丝设计，易于安装
·推压式线缆紧压端盖设计，易于安装
·紧凑的外壳设计
·双极电路设计，工作稳定
·高功率因素，低谐波
·可承受380VAC高压短时冲击
·SELV和Cass || 设计，适用于灯具外使用
·拥有ENEC-TUV,CE,RCM,CCC,UKCA认证
详细参数
产品型号 | 输入电压 | 输出功率 | 输出电压 | 输出电流 | 功率因数 | 效率 | 谐波 | Ta | Tc | 净重(g) | 尺寸(mm) |
BK-PQL009-B0250A | 200-240VAC | 10.5W | 28-42VDC | 0.15-0.25A | 0.95 | 82% | 15% | 60℃ | 85℃ | 60 | L95*W36.5*H24 |
BK-PQL013-B0300A | 200-240VAC | 12.6W | 28-42VDC | 0.25-0.30A | 0.95 | 84% | 15% | 50℃ | 90℃ | 60 | L95*W36.5*H24 |
BK-PQL013-B0350A | 200-240VAC | 14.0W | 28-40VDC | 0.31-0.35A | 0.95 | 84% | 15% | 50℃ | 90℃ | 60 | L95*W36.5*H24 |
BK-PQL018-C0400A | 200-240VAC | 16.8W | 28-42VDC | 0.30-0.40A | 0.95 | 86% | 15% | 50℃ | 90℃ | 62 | L114.5*W41*H24.5 |
BK-PQL018-C0450A | 200-240VAC | 18.0W | 28-40VDC | 0.41-0.45A | 0.95 | 86% | 15% | 50℃ | 90℃ | 62 | L114.5*W41*H24.5 |
BK-PQL022-C0500A | 200-240VAC | 21.0W | 28-42VDC | 0.40-0.50A | 0.95 | 86% | 15% | 50℃ | 90℃ | 74 | L114.5*W41*H24.5 |
BK-PQL022-C0550A | 200-240VAC | 22.0W | 28-40VDC | 0.51-0.55A | 0.95 | 86% | 15% | 50℃ | 90℃ | 74 | L114.5*W41*H24.5 |
BK-PQL022-C0600A | 200-240VAC | 22.8W | 28-38VDC | 0.56-0.60A | 0.95 | 86% | 15% | 50℃ | 90℃ | 74 | L114.5*W41*H24.5 |
BK-PQL040-B0950A | 200-240VAC | 39.9W | 28-42VDC | 0.71-0.95A | 0.95 | 88% | 15% | 45℃ | 90℃ | 95 | L119*W42.5*H28 |
BK-PQL040-B1000A | 200-240VAC | 40.0W | 28-40VDC | 0.96-1.00A | 0.95 | 88% | 15% | 45℃ | 90℃ | 95 | L119*W42.5*H28 |
BK-PQL042-B1000A | 200-240VAC | 42.0W | 28-42VDC | 0.90-1.00A | 0.95 | 87% | 15% | 45℃ | 90℃ | 118 | L135*W45*H29 |
BK-PQL042-B1050A | 200-240VAC | 42.0W | 28-40VDC | 1.00-1.05A | 0.95 | 87% | 15% | 45℃ | 85℃ | 118 | L135*W45*H29 |
BK-PQL042-B1100A | 200-240VAC | 41.8W | 28-38VDC | 1.05-1.10A | 0.95 | 87% | 15% | 45℃ | 85℃ | 118 | L135*W45*H29 |
BK-PQL050-B1200A | 200-240VAC | 50.4W | 28-42VDC | 1.00-1.20A | 0.95 | 88% | 10% | 45℃ | 85℃ | 151 | L135*W45*H29 |
BK-PQL050-B1250A | 200-240VAC | 50.0W | 28-40VDC | 1.21-1.25A | 0.95 | 88% | 10% | 45℃ | 85℃ | 151 | L135*W45*H29 |
BK-PQL060-B1400A | 200-240VAC | 58.8W | 28-42VDC | 1.20-1.40A | 0.95 | 89% | 10% | 45℃ | 85℃ | 151 | L156*W50*H38 |
BK-PQL060-B1500A | 200-240VAC | 60.0W | 28-40VDC | 1.41-1.50A | 0.95 | 89% | 10% | 45℃ | 90℃ | 195 | L156*W50*H38 |
BK-PQL060-B1650A | 200-240VAC | 62.7W | 28-38VDC | 1.51-1.65A | 0.95 | 89% | 10% | 45℃ | 90℃ | 195 | L156*W50*H38 |
详细规格
项目 | 参数 |
额定电压 | 200-240VAC/200-240VDC |
极限电压 | 180-264VAC/180-264VDC |
短时抗压 | 380V |
保护类型 | Class || |
输出类型 | SELV |
电流精度 | 5% |
启动时间 | <0.5s |
空载电压 | <50V |
雷击电压 | L-N:2KV |
频闪参数 | Pst LM <1,SVM <0.4 |
工作温度 | -20°C-+50°C |
防护等级 | IP20 |
寿 命 | 常规下100,000 小时 |
质 保 | 5年 |

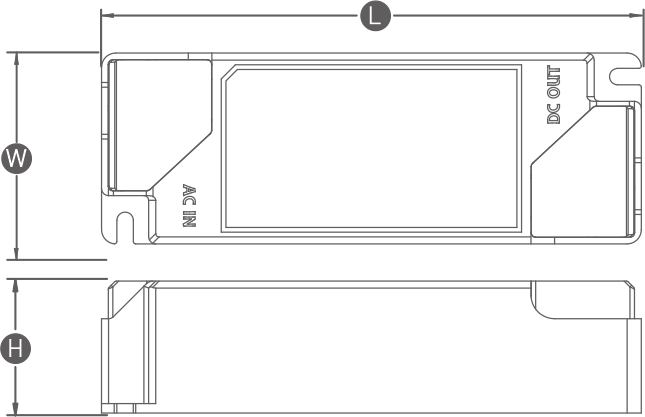

尺寸(单位mm)

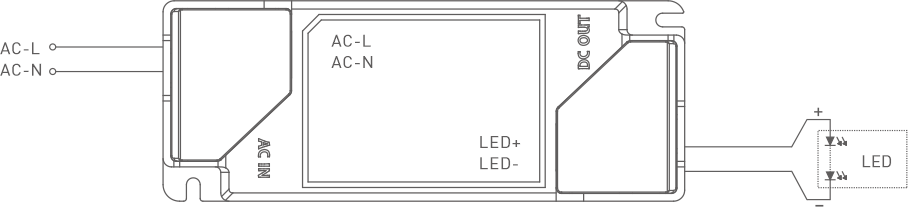

接线图
BK-PQL系列 V3.4
